Test Tube Mixer Trio (Low Type)

SKU: TM-1N/1FN/2N/2FN/HM-1N/1FN/2N/2FN

Specifications

  • Model number: TM-1N
  • Rotation speed (rpm): 200 – 2500 (200 – 1500rpm when stirrer function)
  • Amplitude: 4.5mm
  • Rotation speed settings: Volume setting
  • Rotation control system: Microcomputer method rotation speed feedback system
  • Function: Switch type for automatic (touch) start, continuous operation
  • Motor: High rotation DC brush motor
  • Motor output: Approx 18W
  • Power supply: 100 – 240VAC 50/60Hz (including AC adapter)
  • Material: Aluminum die cast
  • Size: 115 x 230 x 60mm
  • Weight: 2.1kg
  • Accessories: Single attachment x 1 piece
  • Low Type
  • Control Panel : English
  • Plug: Type A (https://en.wikipedia.org/wiki/Mains_electricity_by_country)
  • RoHS3 (EU)2015/863 Certificates can be issued [About RoHS]
  • Package size：195×290×120 mm　2.46 kg [About Package size]

Video Link: 動画 【AXEL GLOBAL】 アズワン (axel-gl.com)

TM-1FN

Order No: 1-4610-42
Rotation speed (rpm): 200 – 2500 (200 – 1500rpm when stirrer function)
Amplitude: 4.5mm
Rotation speed settings: Volume setting
Rotation control system: Microcomputer method rotation speed feedback system
Function: Switch type for automatic (touch) start, continuous operation
Motor: High rotation DC brush motor
Motor output: Approx 18W
Power supply: 100 – 240VAC 50/60Hz (including AC adapter)
Material: Aluminum die cast
Size: 115 x 230 x 60mm
Weight: 2.1kg

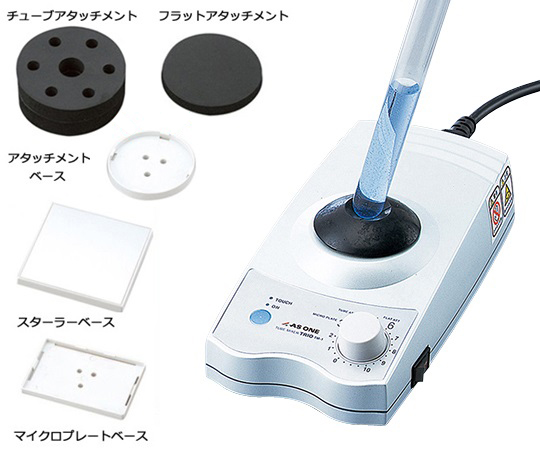

Accessories: Single/flat/tube attachment x 1 piece each, attachment/microplate/stirrer base x 1 piece each
Low Type
Control Panel : English
Plug: Type A (https://en.wikipedia.org/wiki/Mains_electricity_by_country)
RoHS3 (EU)2015/863 Certificates can be issued [About RoHS]
Package size：315×570×270 mm　12.1 kg

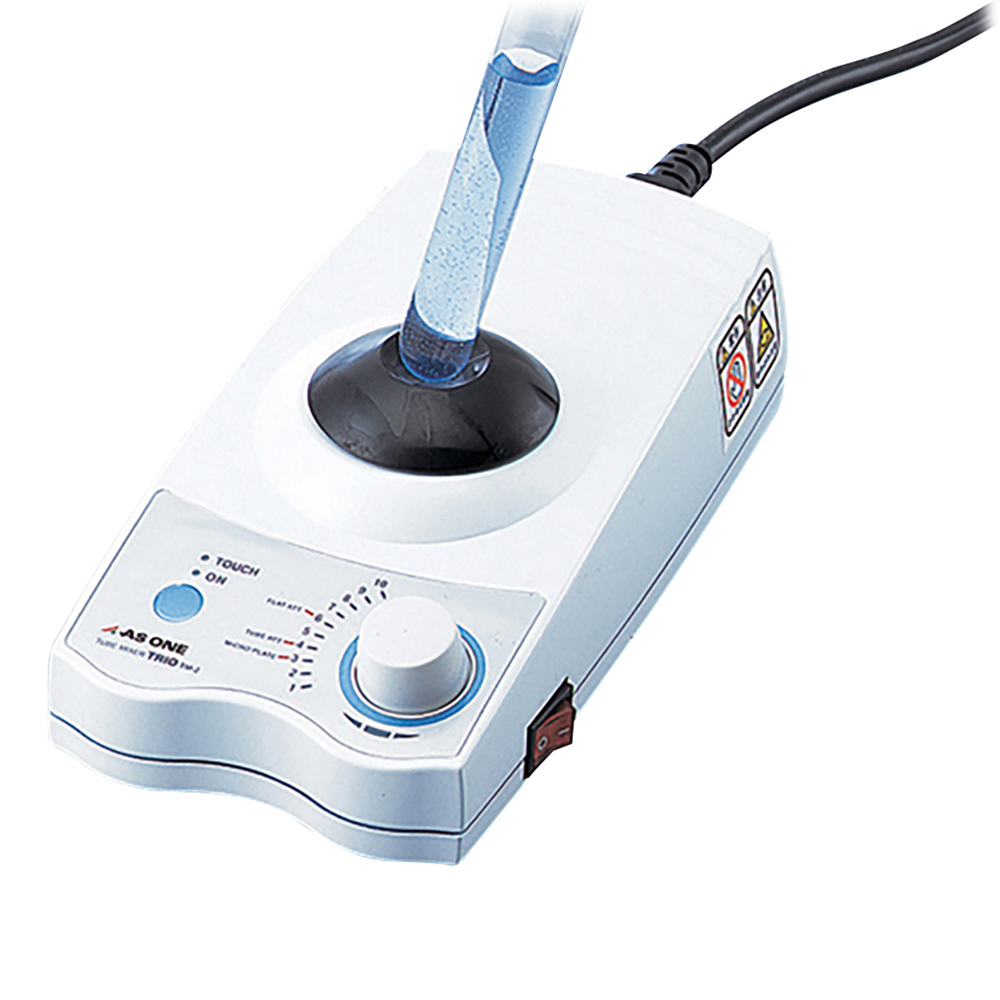

TM-2N

Order No: 1-4610-43
Rotation speed (rpm): 200 – 2500 (200 – 1500rpm when stirrer function)
Amplitude: 4.5mm
Rotation speed settings: Volume setting
Rotation control system: Microcomputer method rotation speed feedback system
Function: Switch type for automatic (touch) start, continuous operation
Motor: High rotation DC brush motor
Motor output: Approx 18W
Power supply: 100 – 240VAC 50/60Hz (including AC adapter)
Material: Aluminum die cast
Size: 115 x 230 x 60mm
Weight: 2.1kg
Accessories: Single attachment x 1 piece
Low Type
Control Panel : English
Plug: Type A (https://en.wikipedia.org/wiki/Mains_electricity_by_country)
RoHS3 (EU)2015/863 Certificates can be issued [About RoHS]
Package size：290×190×120 mm　2.43 kg
TM-2FN

Order No: 1-4610-44
Rotation speed (rpm): 200 – 2500 (200 – 1500rpm when stirrer function)
Amplitude: 4.5mm
Rotation speed settings: Volume setting
Rotation control system: Microcomputer method rotation speed feedback system
Function: Switch type for automatic (touch) start, continuous operation
Motor: High rotation DC brush motor
Motor output: Approx 18W
Power supply: 100 – 240VAC 50/60Hz (including AC adapter)
Material: Aluminum die cast
Size: 115 x 230 x 60mm
Weight: 2.1kg
Accessories: Single/flat/tube attachment x 1 piece each, attachment/microplate/stirrer base x 1 piece each
Low Type
Control Panel : English
Plug: Type A (https://en.wikipedia.org/wiki/Mains_electricity_by_country)
RoHS3 (EU)2015/863 Certificates can be issued [About RoHS]
Package size：295×280×120 mm　3 kg

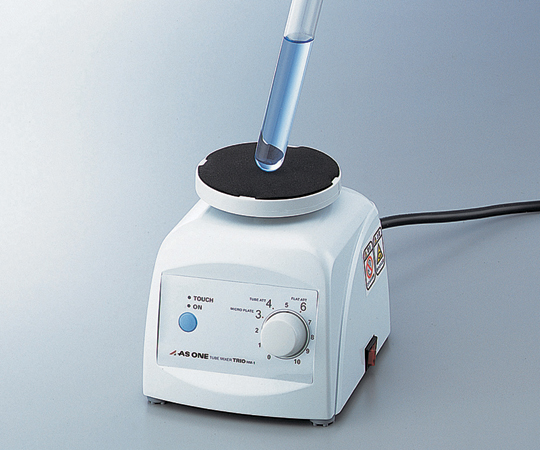

HM-1N

Order No: 1-4611-21
Features
Possible to choose 2-types of operation mode（touch mode, continuous operation mode）.　　
TM-2N・2FN、HM-2N・2FN：Strength of shaking and rotation speed can be checked by LED bar graph.　　

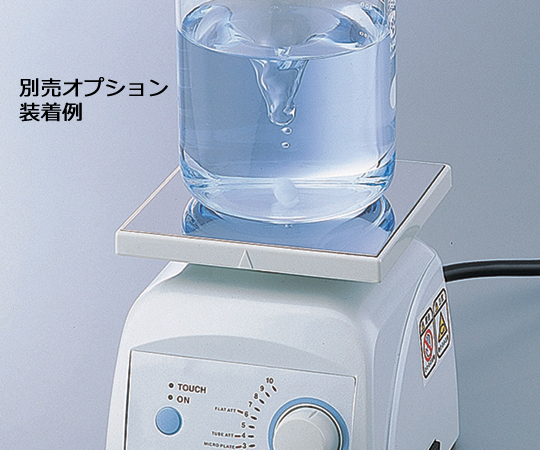

By attaching stirrer base, Usable as stirrer that is capable of stirring up to 2000*ml*（Max. speed 1500rpm）.
Specifications
Rotation speed (rpm): 200 – 2500 (200 – 1500rpm when stirrer function)
Amplitude: 4.5mm
Rotation speed settings: Volume setting
Rotation control system: Microcomputer method rotation speed feedback system
Function: Switch type for automatic (touch) start, continuous operation
Motor: High rotation DC brush motor
Motor output: Approx 18W
Power supply: 100 – 240VAC 50/60Hz (including AC adapter)
Material: Aluminum die cast
Size: 125 x 155 x 100mm
Weight: 2.3kg
Accessories: Flat attachment x 1 piece, attachment base x 1 piece
High Type
Control Panel : English
Plug: Type A (https://en.wikipedia.org/wiki/Mains_electricity_by_country)
RoHS3 (EU)2015/863 Certificates can be issued [About RoHS]
Package size：235×235×165 mm　2.32 kg
HM-1FN

Order No: 1-4611-22
Features
Possible to choose 2-types of operation mode（touch mode, continuous operation mode）.　　
TM-2N・2FN、HM-2N・2FN：Strength of shaking and rotation speed can be checked by LED bar graph.　　
By attaching stirrer base, Usable as stirrer that is capable of stirring up to 2000*ml*（Max. speed 1500rpm）.
Specifications
Rotation speed (rpm): 200 – 2500 (200 – 1500rpm when stirrer function)
Amplitude: 4.5mm
Rotation speed settings: Volume setting
Rotation control system: Microcomputer method rotation speed feedback system
Function: Switch type for automatic (touch) start, continuous operation
Motor: High rotation DC brush motor
Motor output: Approx 18W
Power supply: 100 – 240VAC 50/60Hz (including AC adapter)
Material: Aluminum die cast
Size: 125 x 155 x 100mm
Weight: 2.3kg
Accessories: Single/flat/tube attachment x 1 piece each, attachment/microplate/stirrer base x 1 piece each
High Type
Control Panel : English
Plug: Type A (https://en.wikipedia.org/wiki/Mains_electricity_by_country)
RoHS3 (EU)2015/863 Certificates can be issued [About RoHS]
Package size：240×330×165 mm　2.9 kg
HM-2N

Order No: 1-4611-23
Possible to choose 2-types of operation mode（touch mode, continuous operation mode）.　　
TM-2N・2FN、HM-2N・2FN：Strength of shaking and rotation speed can be checked by LED bar graph.　　
By attaching stirrer base, Usable as stirrer that is capable of stirring up to 2000*ml*（Max. speed 1500rpm）.
Specifications
Rotation speed (rpm): 200 – 2500 (200 – 1500rpm when stirrer function)
Amplitude: 4.5mm
Rotation speed settings: Volume setting
Rotation control system: Microcomputer method rotation speed feedback system
Function: Switch type for automatic (touch) start, continuous operation
Motor: High rotation DC brush motor
Motor output: Approx 18W
Power supply: 100 – 240VAC 50/60Hz (including AC adapter)
Material: Aluminum die cast
Size: 125 x 155 x 100mm
Weight: 2.3kg
Accessories: Flat attachment x 1 piece, attachment base x 1 piece
Rotation speed display: LED 10 steps
High Type
Control Panel : English
Plug: Type A (https://en.wikipedia.org/wiki/Mains_electricity_by_country)
RoHS3 (EU)2015/863 Certificates can be issued [About RoHS]
Package size：230×235×165 mm　2.32 kg
HM-2FN

Order No: 1-4611-24
Features
Possible to choose 2-types of operation mode（touch mode, continuous operation mode）.　　
TM-2N・2FN、HM-2N・2FN：Strength of shaking and rotation speed can be checked by LED bar graph.　　
By attaching stirrer base, Usable as stirrer that is capable of stirring up to 2000*ml*（Max. speed 1500rpm）.
Specifications
Rotation speed (rpm): 200 – 2500 (200 – 1500rpm when stirrer function)
Amplitude: 4.5mm
Rotation speed settings: Volume setting
Rotation control system: Microcomputer method rotation speed feedback system
Function: Switch type for automatic (touch) start, continuous operation
Motor: High rotation DC brush motor
Motor output: Approx 18W
Power supply: 100 – 240VAC 50/60Hz (including AC adapter)
Material: Aluminum die cast
Size: 125 x 155 x 100mm
Weight: 2.3kg
Accessories: Single/flat/tube attachment x 1 piece each, attachment/microplate/stirrer base x 1 piece each
Rotation speed display: LED 10 steps
High Type
Control Panel : English
Plug: Type A (https://en.wikipedia.org/wiki/Mains_electricity_by_country)
RoHS3 (EU)2015/863 Certificates can be issued
