High Pressure Jack

SKU: J-1/5/5K
Order No Model No Dimensions(mm)
1-1187-01 J-1 200 × 160 × 370
1-1187-02 J-5 320 × 380 × 480
1-1187-03 J-5K 406 × 380 × 480

Suitable for destructive test for samples

*This product might require extra fees.

Features

  • Peak hold meter*#※1#* with 2-pointers allows you to use the product as a convenient test device.※1　Example…1-pointer indicates 0 during crushing, and other pointer stops when break down pressure is reached.
  • J-1MP：It is vice mechanism facilitates fine adjustment of weight.
  • J-2DS：It is high accuracy load cell ensures digital display and accurate measurement of applied pressure.

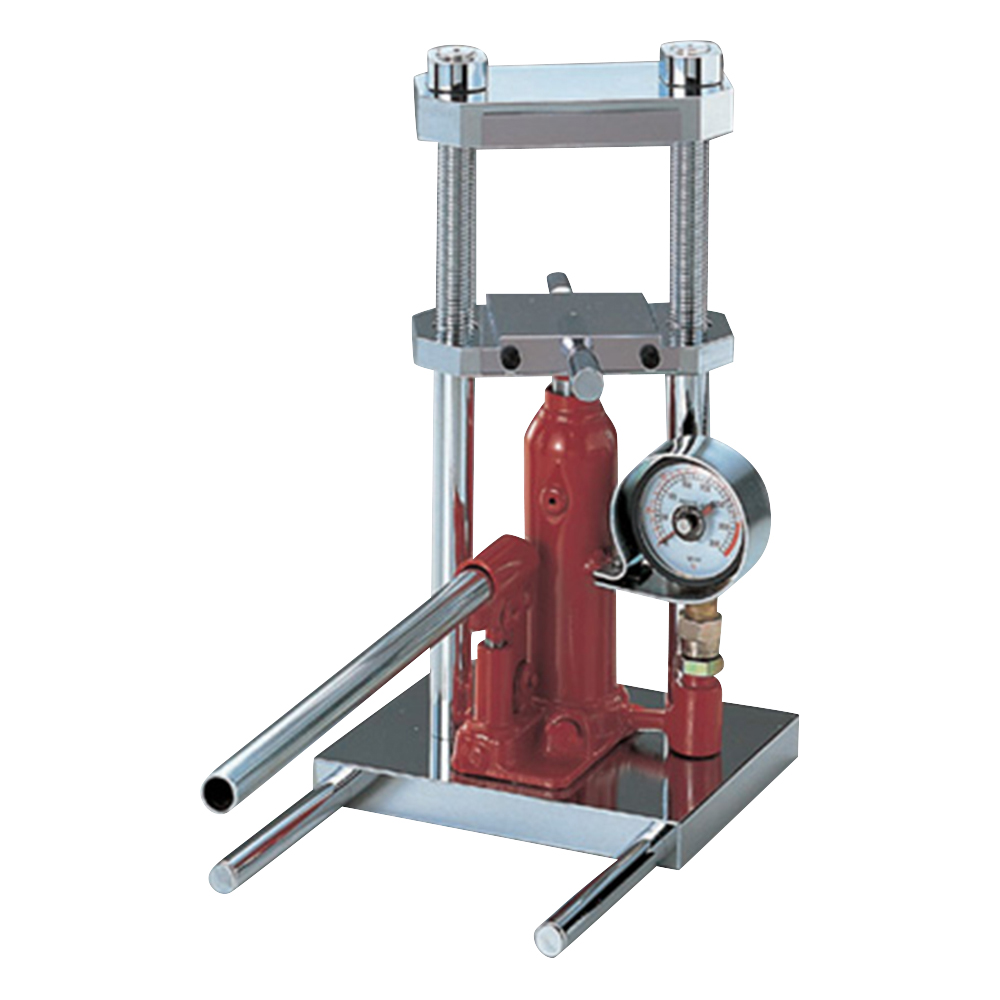

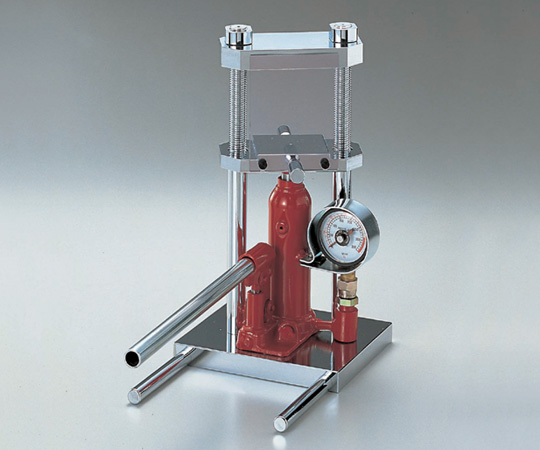

J-1

Order No: 1-1187-01
Model number: J-1
Size: 200 x 160 x 370mm
Plate size (effective width): 80 x 80mm
Stroke: 0 – 100mm
Pressure gauge: 0 – 1000kg (with left needle)
Plate load: 0 – 1000kg
Power supply: Without
Weight: 14kg
Package size：280×360×420 mm　17.2 kg

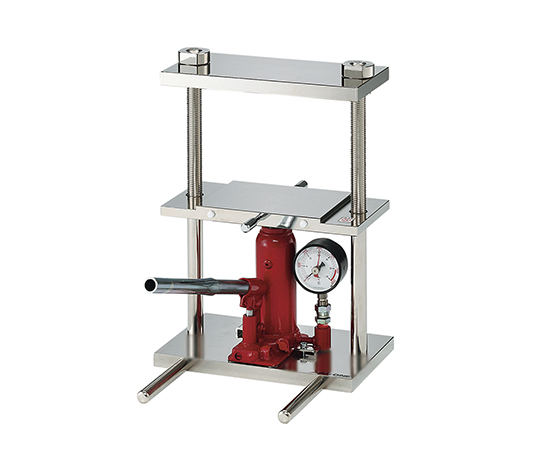

J-5

Order No: 1-1187-02
Model number: J-5
Size (mm): 320 x 380 x 480
Plate size (effective width): 200 x 150
Stroke: 0 – 110
Pressure gauge: 0 – 5t (with left needle)
Plate load: 0 – 5t
Power supply: Without
Weight: 35kg
*it cannot hold pressure for long hours.
*Pressure is recommended for use in 50% or more of the largest value.
Package size：490×340×555 mm　42 kg

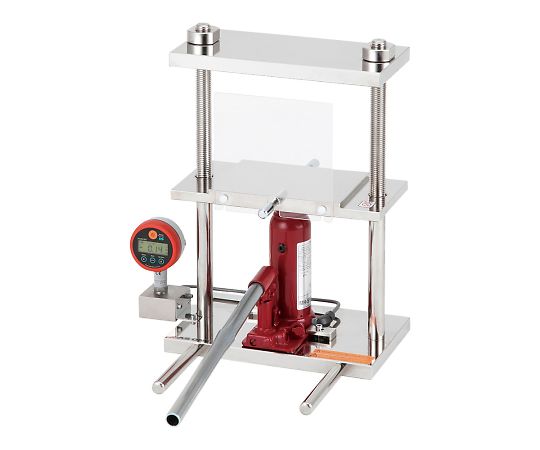

J-5K

Order No: 1-1187-03
Size (mm): 406 x 380 x 480
Plate Size (effective width): 200 x 150 mm
Stroke: 0 to 110 mm
Pressure Gauge: Digital Display (With Peak Hold Function)
Plate Weight: 0 to 5 t
power supply: None
Weight: 36 kg
*Pressure cannot be maintained for a long time.
*It is recommended to apply pressure at 50% or more of the maximum value.
*The hot plate size and stroke can be customized. Please contact us.
* Wooden packaging (Wooden frames, pallets, etc.) is used.
Package size：540×375×590 mm　49 kg
