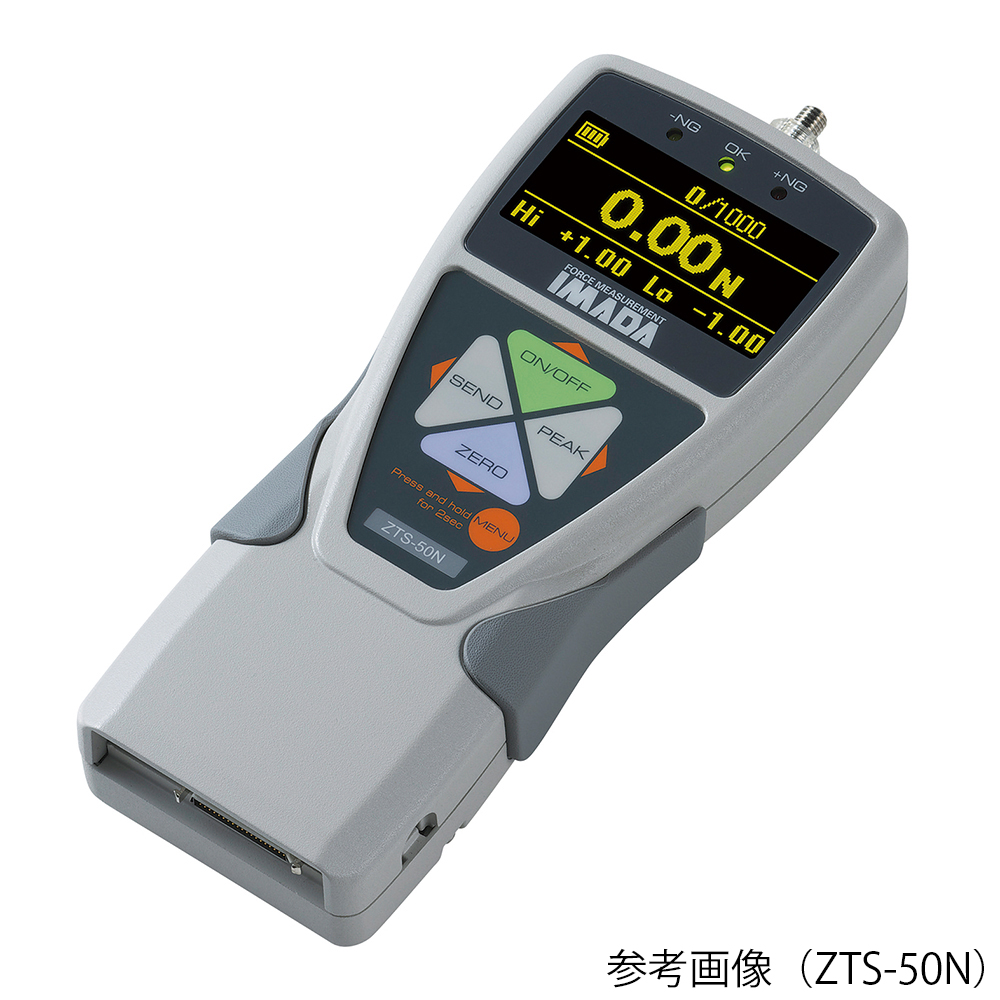

Digital Force Gauge

Highlights

• High-speed sampling (2000 Hz) follows sudden load changes, ensuring high reproducibility of both peak values and continuous data.
• Equipped with an OLED display, the three-divided screen can display your preferred measurement parameters.
• Various data outputs are possible through USB, wireless, and serial communication, thus making it possible to use the system in a wide range of situations, from data management on PCs to control of external devises, such as stopping a machine at a specified load value.
• The provided USB cable and software allow the reading of internal memory data and continuous data acquisition. Optional software (sold separately) enables the real-time graphing of load vs. time.
• Displacement can be measured using a displacement meter (sold separately).**ZTA Series
• A USB flash drive can be connected for continuous data storage, making it convenient for measurements in places where PCs cannot be brought.**ZTA Series
• Capable of detecting 1st and 2nd peaks.**ZTA Series

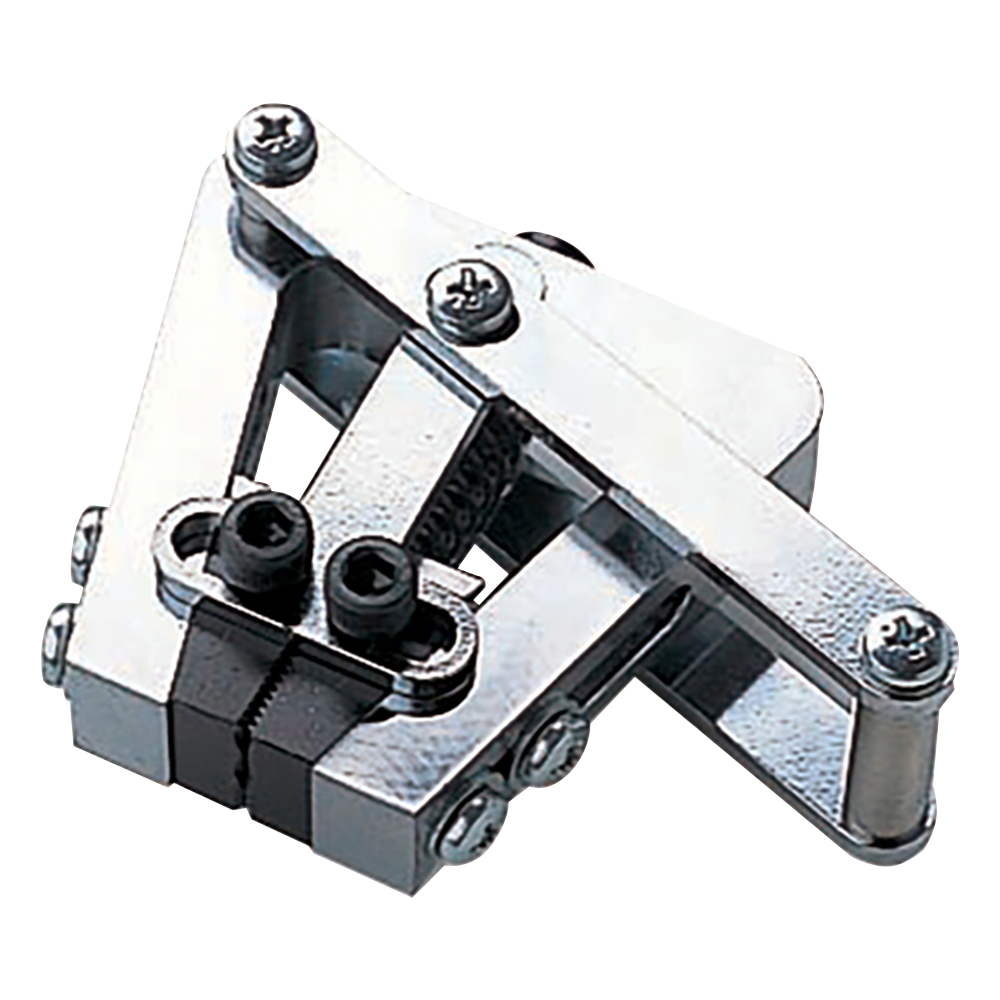

Attachment for Force Gauge

• Various test can be done by combining force gauges.
• Flat zipper is attachment for tensile strength test.
• Film zipper is suitable for grabbing thin sample.
• Wedge zipper is suitable for things which is easy to fall out such as optical fiber or deformed wire.
• Knurling cam type attachment is suitable for samples becomes thin when it is extended.
• Film zipper clamp lever is formula by oneside urethane.

General Specifications

• Accuracy: ±0.2% FS ± 1 digit
• Display: Signed 4-digit
• Sampling: 2000 times/s max
• Output Function: Common/USB (2.0 and 3.0), RS232C, 2-VDC analog output (D/A), three comparator levels (-NG/OK/+NG), overload warning, ZTA only/two sub comparator levels (high/low judgement output), USB flash drive, and displacement
• Function: Common/Multi-display (upper/lower 2-level selective display), peak hold (tensile and compression), internal memory (1000 data items), comparator (pass/fail judgement), screen display inversion, sign inversion, zero clear time, +NG alarm, OFF timer (automatic power OFF), sensitivity settings, time display, setting lock, ZTA only/1st/2nd peak detection, displacement detection at peak load, and reset displacement at specified loads
• Size: 75 x 34 x 191mm
• Power Supply: Built-in battery or 100 to 240 VAC (AC adapter included)
• Weight: Approx. 490g

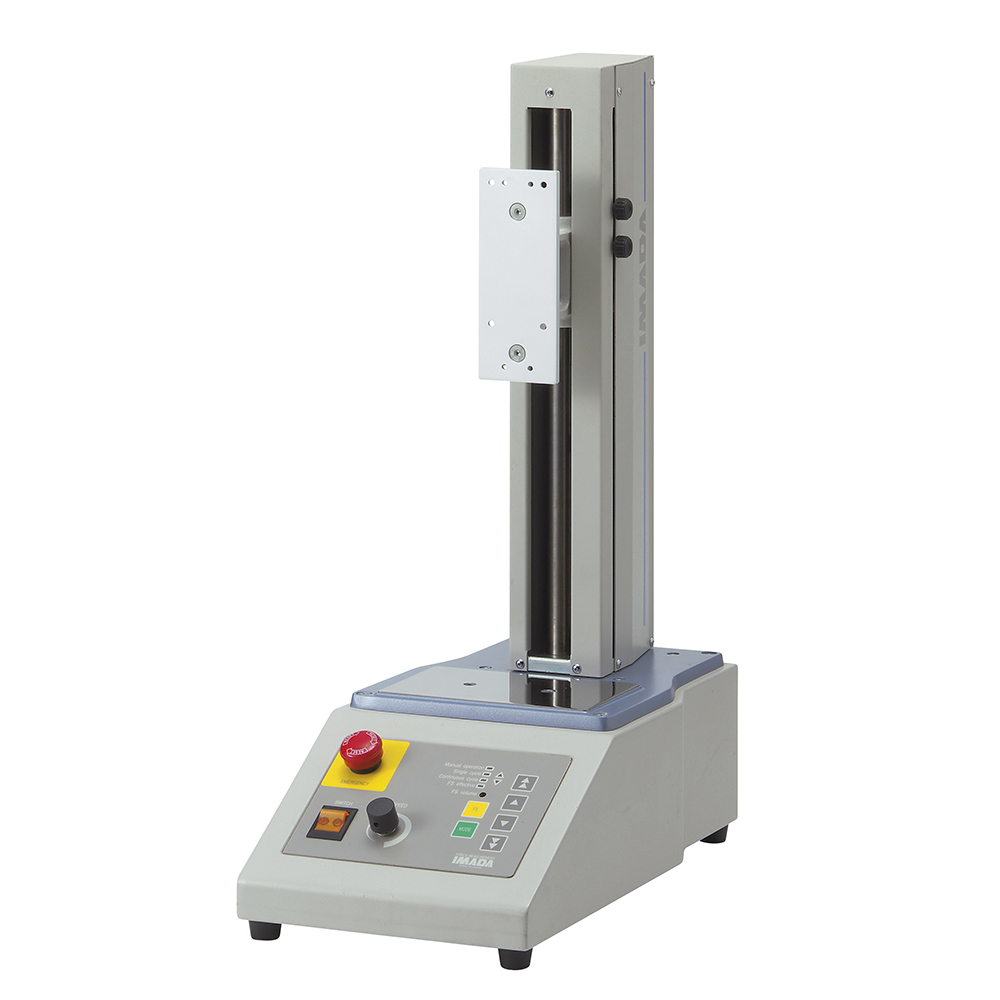

Measuring Stand

• Maximum Stand Height: 500N/approx. 235mm, 1000N/approx. 300mm
• Operation Speed: 10 to 300mm/min
• Control Functions: Emergency stop, load control and overload prevention
• Power Supply: 100 to 240 VAC

Attachment for Force Gauge

• Mounting Screws: M6 (PGC-0510 is hook type)

Optional Accessories

• Eight attachments (small hook, flat, conical, A-type, V-type, connecting rod, large hook, and double hook)
• Adapter for USB flash drive (ZTA only)
• USB cable
• Storage case
• Driver CD (with data capture software)
• AC adapter
