| MODEL | InKjel 450TCP / InKjel 475TCP / InKjel 625TCP / InKjel 1210TCP / InKjel 1225TCP |
|---|---|
| Width (in cm) | 54.00 |
| Depth (in cm) | 44.00 |
| Height (in cm) | 75.00 |
| Weight (in kg) | 20.00 |
| Power consumption (in W) | 1500 |
| Current consumption (in A) | 8 |
| Sample positions | 4 / 4 / 6 / 12 / 12 |
| Digestion vessel size | 500mL / 750mL / 250mL / 100mL / 250mL |
| Energy setting range | 0 – 100 %, infinitely variable, manually adjustable |
| Time setting range | 0 – 199 min, in steps of 1 min |
| Programs | 25 individually configurable programs for temperature and digestion time |

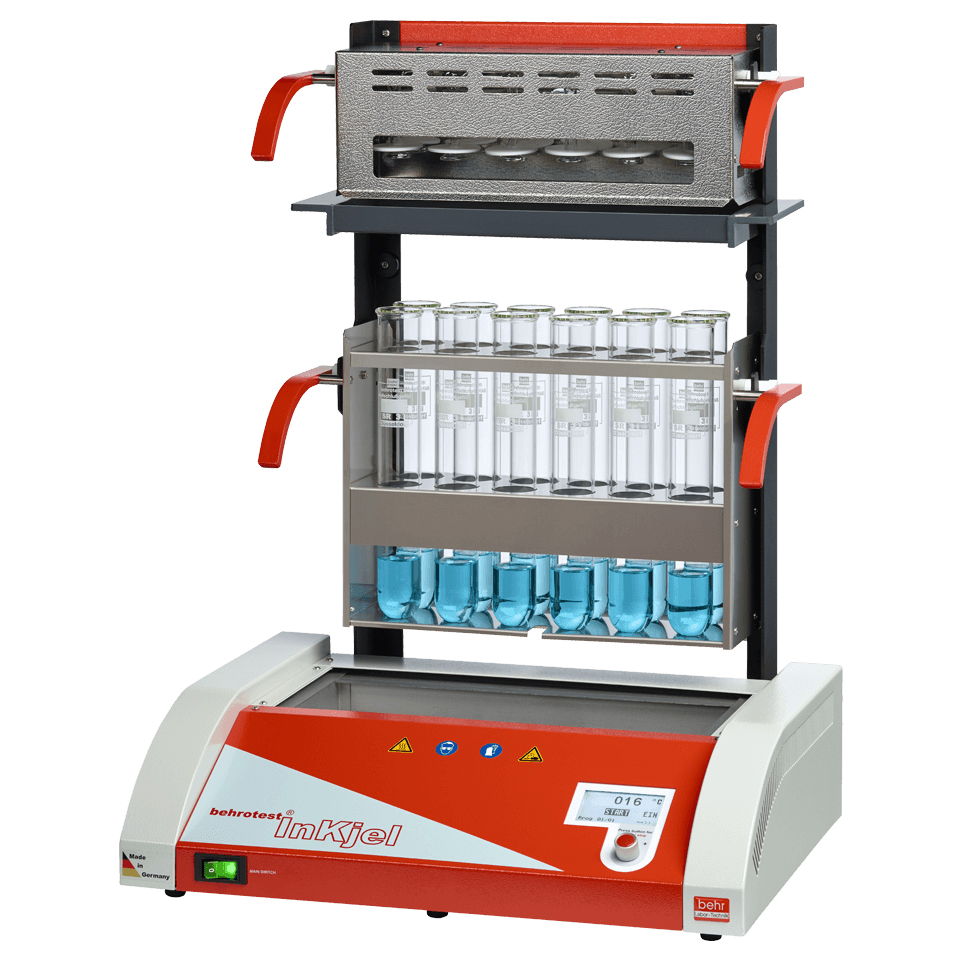

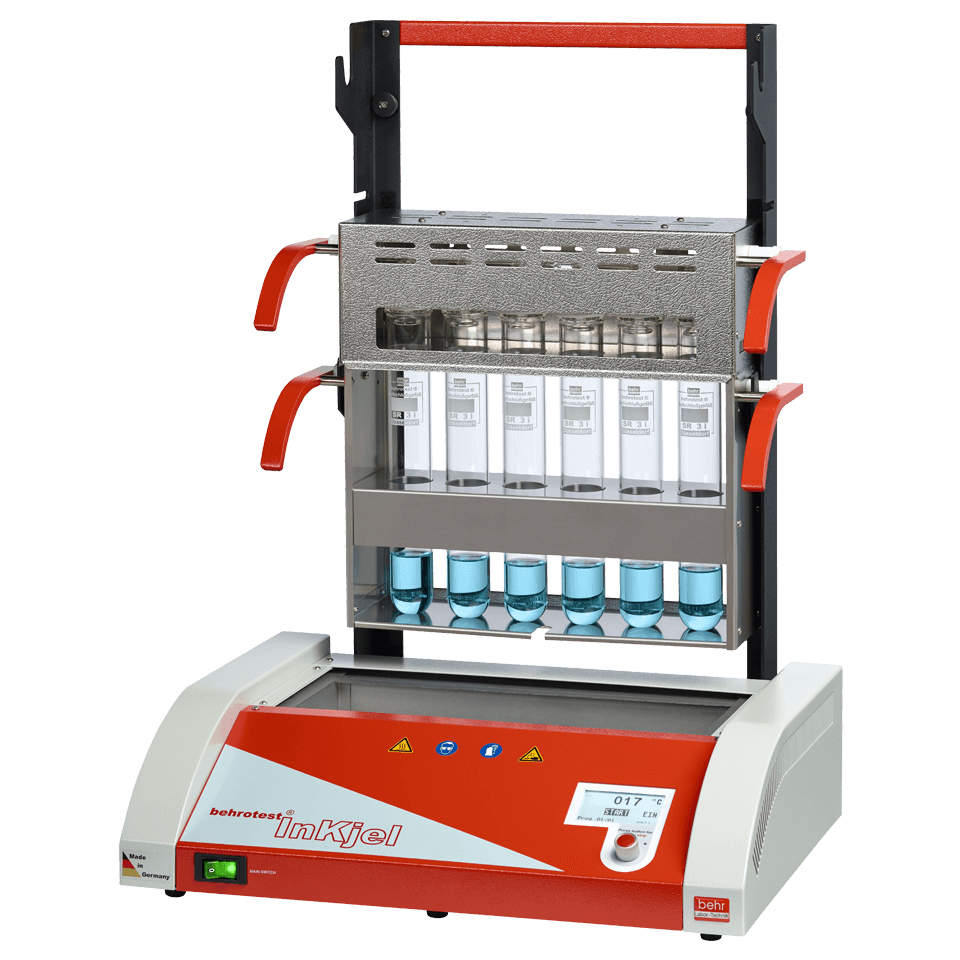

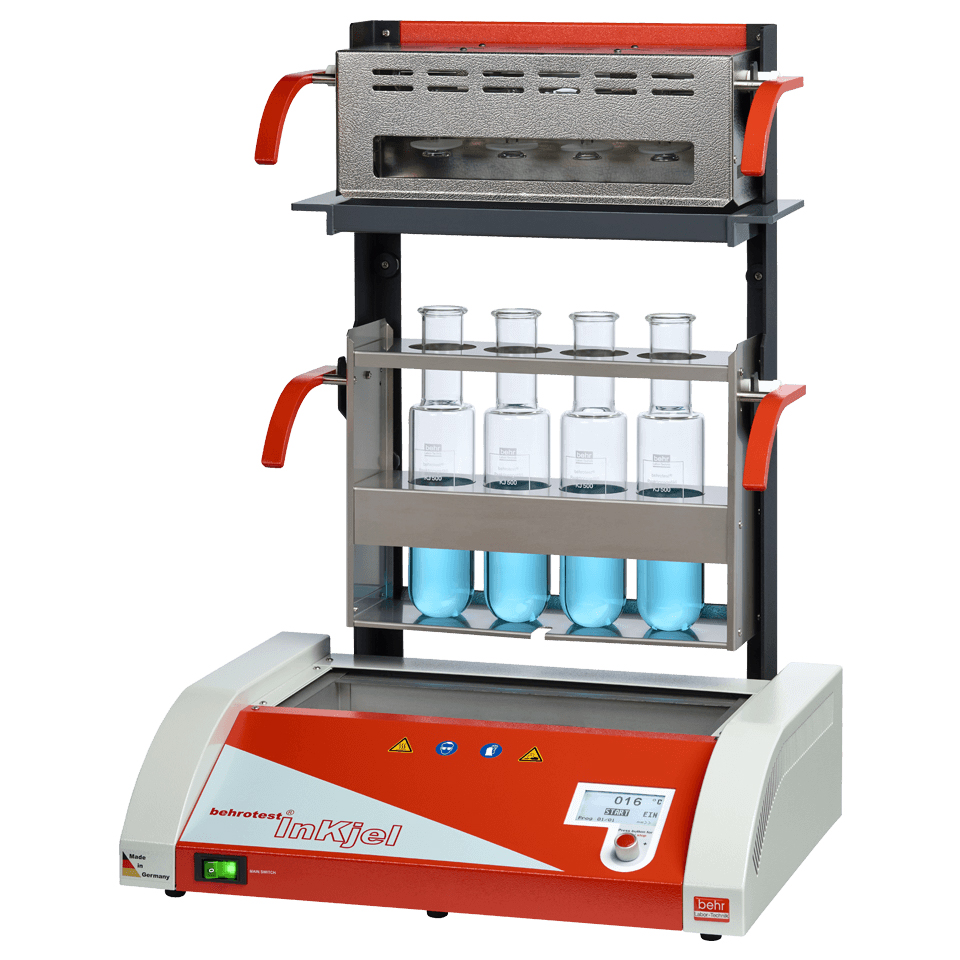

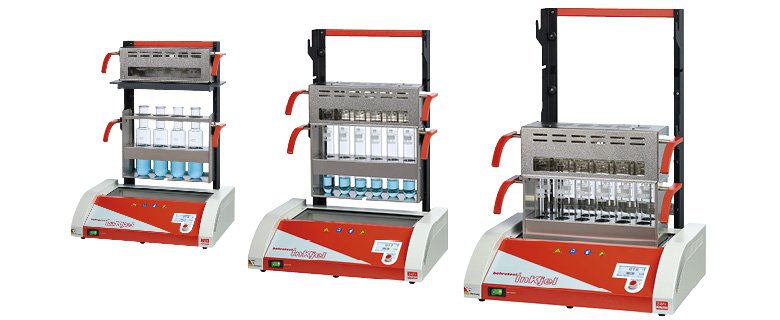

Behr-Labor behrotest® Kjeldahl Rapid Infrared Digestion System, with programmable energy control, temperature control, InKjel TCP-series, with 4 / 6 / 12 sample positions
Infrared rapid digestion devices for nitrogen determination according to Kjeldahl
The digestion units of the model series behrotest® InKjel are equipped with a high-performance infrared heater. Quality and position of the behr infrared heater guarantee the user identical heating phases and digestion temperatures at all sample positions.
This also applies to the double-row arrangement for racks for 12 samples. The glass digestion vessels are suspended in the rack and are not deposited at the bottom of the digestion unit. Therefore the digestion units are less susceptible to breakage than in an aluminum heating block.
This makes the behrotest® InKjel the ideal digestion system for nitrogen determination according to Kjeldahl and other high-temperature digestions. In the Kjeldahl digestions, the temperature is adjusted through the boiling point of sulfuric acid.
- Direct heating of the samples by the infrared heater prevents the endlessly long heating times required using conventional heating block systems
- High-quality quartz heaters instead of the common steel-tube heater ensure particularly homogeneous heating at all sample positions.
- The glass digestion vessels are suspended in the rack and are not deposited at the bottom of the digestion unit. Therefore the digestion units are less susceptible to breakage than in an aluminum heating block.
- Various application possibilities: Rack for reaction vessels with 250 ml, 500 ml and 750 ml.
- With 500 ml and 750 ml vessels also suitable for nitrogen determination in water analysis.
- Easy conversion for various vessel sizes through the exchange of rack and fume extraction unit.
- Easy to operate.
- Very effective price/performance relationship.
